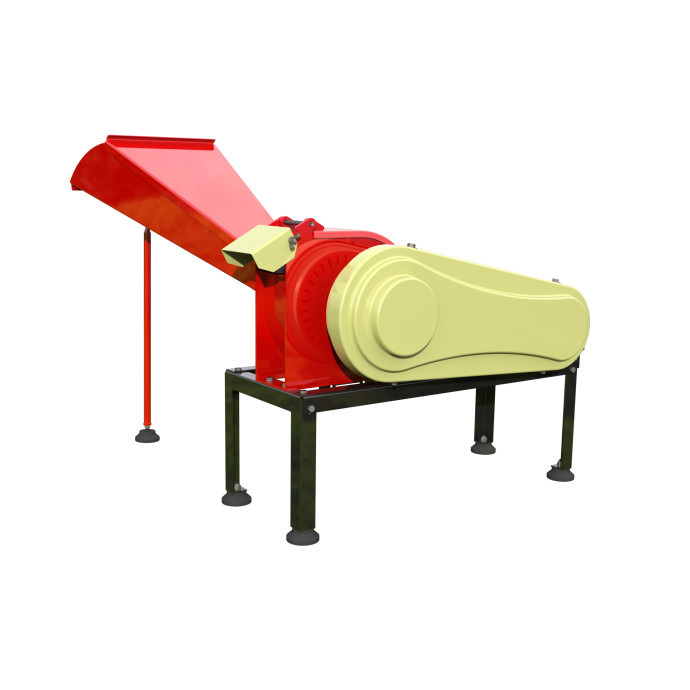

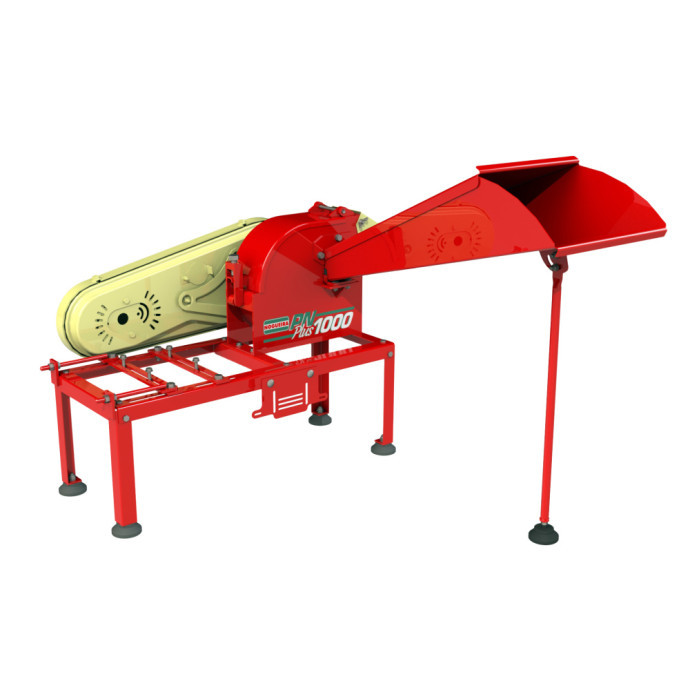

Product Description The Nogueira PN PLUS 1000 is a heavy-duty, tractor PTO-driven hammer mill designed for high-volume grinding of dry grains, corn cobs with grain, ear corn, cottonseed cake, soybean, coffee husks, and other dry materials into balanced animal rations or concentrates. Built for large farms, feedlots, cooperatives, and commercial feed producers, this robust machine delivers up to 1,000 kg/h (fine grind) using its powerful 36-hammer rotor and reinforced 5 mm thick sieve options. The PN PLUS 1000 features a reinforced chassis, cyclone with dust separation, and direct bagging spout — ensuring a clean workspace and easy collection. With hydraulic or manual unloading options and a foldable discharge pipe, it is the perfect solution for professional, dust-free, high-output grain processing directly in the field or yard.

Product Attributes • Model: PN PLUS 1000 (tractor PTO line) • Drive: Tractor PTO (540 RPM standard) – minimum 35–50 CV recommended • Rotor: 36 tempered, reversible hammers (high wear resistance) • Sieves Included: 4 units – 3 mm, 5 mm, 8 mm, 10 mm (5 mm thick reinforced) • Cyclone: High-efficiency dust-separation cyclone with bagging spout • Production Capacity: 600–1,000 kg/h (fine to medium grind) | up to 1,500 kg/h (coarse) • Feed Inlet: Large top hopper with magnetic plate (removes metal debris) • Discharge: Cyclone with foldable pipe + hydraulic or manual unloading system • Materials: Reinforced thick-gauge steel chassis with anti-corrosion paint • Weight: ≈ 380–420 kg (complete with cyclone) • Safety Features: Magnetic plate, protective guards, shear bolt PTO protection • Maintenance: Easy hammer reversal, quick sieve change, centralized grease points

Best Possible Applications • Large-Scale Feed Production: Grind 800–1,000 kg/h of corn, soybean, and supplements for dairy, beef, poultry, or pig rations. • Commercial Feed Mills & Cooperatives: Mobile high-output grinding with direct clean bagging. • Ear Corn & Cob Processing: Efficiently process whole corn cobs with grain for cattle feed. • Field or Yard Operation: PTO-driven mobility — take the mill to the grain storage or harvest site.
